die cutting creasing machine

DONGGUANG COUNTY XINZHEDA TRADING CO.,LTD

die cutting creasing machine

  • 1
  • 2

Brand Name : XZD

Model Number : 750/930/1100/1200/1300/1400/1500/1600/1800/2000

Certification : ISO

Place of Origin : hebei

MOQ : 1set

Price : 5000$-25000$

Supply Ability : 50sets/month

Delivery Time : 20days

Packaging Details : plastic film wrap

Contact Now

Creasing and cutting machine is special equipment for creasing and cutting ordinary cardboard, corrugated board, plastic and leather in general, applicable to printing packaging decoration and plastic industries. It has compact structure, in workmanship, big pressure, high precision and easy and reliable operation etc.

Features:

1) Sliding bearings are made of high quality alloy cooper, thus to enhance the effect of anti-friction and vibration reducing

2) Fly wheel with big moment of force and large pressure

3) High strength due to whole iron casting by using high quality material for machine body

4) Single plate electromagnetic clutch is sensitive and reliable

5) With functions of single piece, continuous and opening delay operating, dwell range is adjustable from 1-10 seconds

6) Operating position is reasonably designed, moving-bed can be open to its optimum
7) Central lubrication system guarantees fine lubrication and reduce friction

8) Safety system is reliable

9) Adjustable chase clamp structure can adapt all kind of die mould plate

10) Easy to operation and maintenance

11) Electric control system is in line with international standard

12) CE standard model can be made upon request


Creasing and die cutting machine Main Technical Parameters


ModelMax.Rule AreaWorking speedWacrulelengthMolorWeightOverall Dimensions(L×W×H)
PYQ401C750×520mm28±2(stroes/min)﹤15m2.2kw2000kg1260×1350×1280mm
PYQ203D930×670mm23±2(stroes/min)﹤25m4.0kw3000kg1800×1600×1600mm
ML 11001100×800mm20±2(stroes/min)﹤32m5.5 kw4500kg1900×1800×1700mm
ML 12001200×830mm20±2(stroes/min)﹤35m5.5 kw4800kg1900×2000×1700mm
ML 13001300×920mm18±2(stroes/min)﹤40m5.5 kw/7.5kw6000kg2000×2400×1800mm
ML 14001400×1000mm18±2(stroes/min)﹤45m5.5 kw/7.5kw6500kg2000×2450×1900mm
ML 15001500×1050mm18±2(stroes/min)﹤45m5.5 kw/7.5kw7000kg2000×2500×1930mm
ML 16001600×1250mm16±2(stroes/min)﹤50m11kw11000kg2170×2560×2130mm
ML 18001800×1300mm16±2 (stroes/min)﹤62m15kw13500kg2240×2800×2230mm
ML 20002000×1400mm16±2 (stroes/min)﹤80m15kw14500kg2280×2900×2230mm


Wholesale die cutting creasing machine from china suppliers

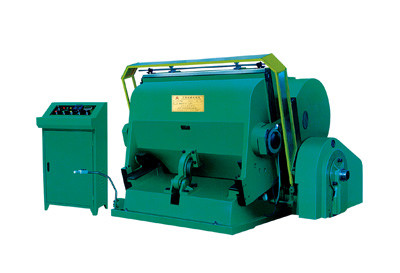

die cutting creasing machine Images
